CBSE Class 12 · 2002 · All India Compartment · SolutionsShort Answer

WhatsApp Email

"The solution of a non-volatile solute boils at a higher temperature than the pure solvent." Show this relationship on a graphic diagram.

Solution

Draw vapour pressure (y-axis) against temperature (x-axis).
The solvent's curve lies above; the solution's curve runs parallel but lower, because the non-volatile solute lowers the vapour pressure at every temperature.
A liquid boils when its vapour pressure equals the external (1 atm) line: the solvent's curve meets this line at

T_{b}^{\circ}

, the solution's only at a higher temperature

T_{b}

.
Hence

Δ T_{b} = T_{b} - T_{b}^{\circ} > 0

— the solution boils at the higher temperature (see figure).

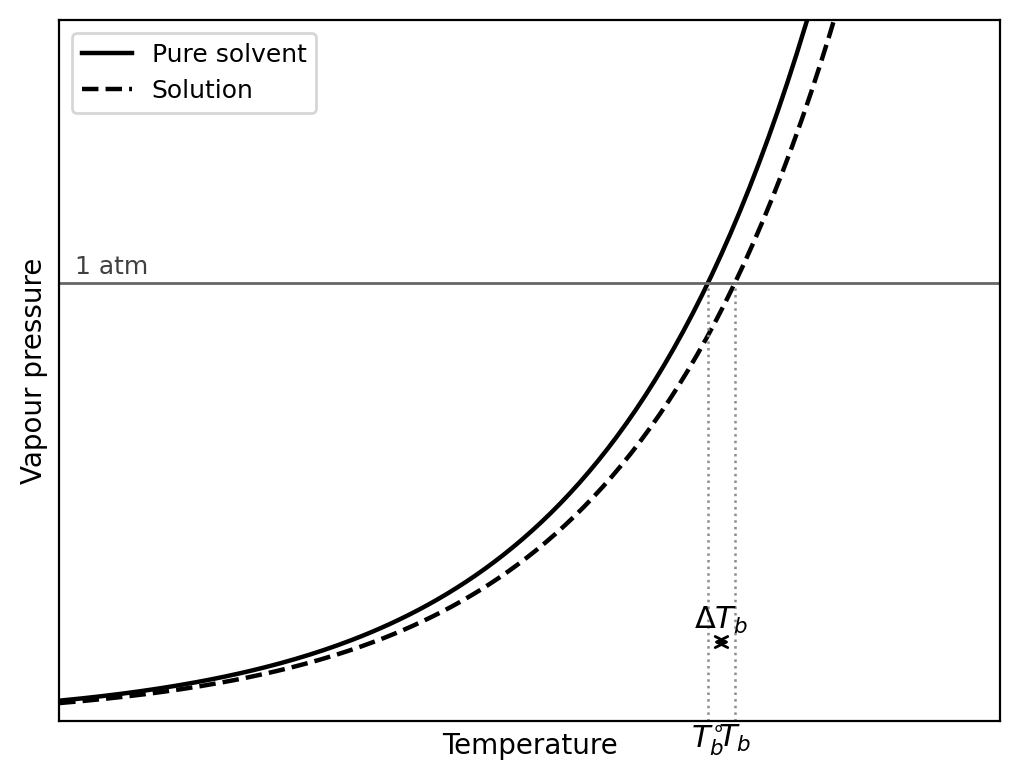

Structure Vapour pressure vs temperature: the solution's curve lies below the solvent's, so it reaches 1 atm at a higher temperature (elevation of boiling point) — Vapour pressure vs temperature: the solution's curve lies below the solvent's, so it reaches 1 atm at a higher temperature (elevation of boiling point)
