JEE Main · 2023 · 01 Feb 2023 · Shift 1 · Rotational Mechanics

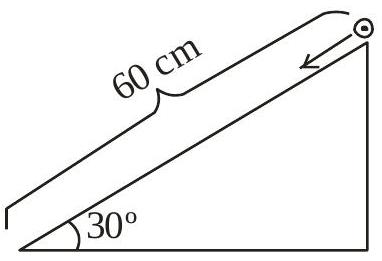

A solid cylinder is released from rest from the top of an inclined plane of inclination

3 0^{\circ}

and length 60 cm. If the cylinder rolls without slipping, its speed upon reaching the bottom of the inclined plane is ______

ms^{- 1}

. (Given

g = 10 ms^{- 2}

)

Answer: 2

Solution

Rolling without slipping, the cylinder's energy at the foot is shared between translation and rotation, giving

v = \frac{2 g h}{1 + k ^{2} / R ^{2}}

. For a solid cylinder

\frac{k ^{2}}{R ^{2}} = \frac{1}{2}

, so

v = \frac{2 g h}{3/2} = \frac{4 g h}{3}

. The height dropped is

h = 0.60 sin 3 0^{\circ} = 0.30 m

, hence

v = \frac{4 ( 10 ) ( 0.30 )}{3} = 4 = 2 m s^{- 1} .
