JEE Main · 2023 · 24 Jan 2023 · Shift 2 · Electromagnetic Induction

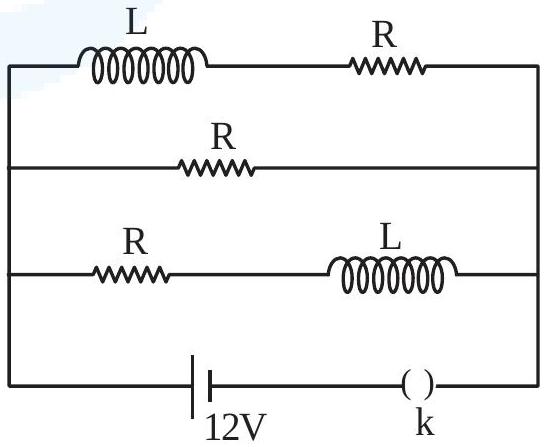

Three identical resistors with resistance

R = 12 Ω

and two identical inductors with self inductance

L = 5

mH are connected to an ideal battery with emf of 12 V as shown in figure. The current through the battery long after the switch has been closed will be ______ A.

Answer: 3

Solution

Long after the switch is closed the currents are steady, so each inductor carries a constant current and drops no voltage, behaving as a plain connecting wire. Every one of the three parallel branches between the battery terminals then presents only its resistor

R = 12 Ω

, and three equal resistances in parallel give

R_{e q} = \frac{R}{3} = 4 Ω

. The current drawn from the battery is

I = \frac{12}{4} = 3

JEE Main · 2023 · 24 Jan 2023 · Shift 2 · Integer answer
