JEE Main · 2023 · 25 Jan 2023 · Shift 2 · Modern Physics

WhatsApp Email

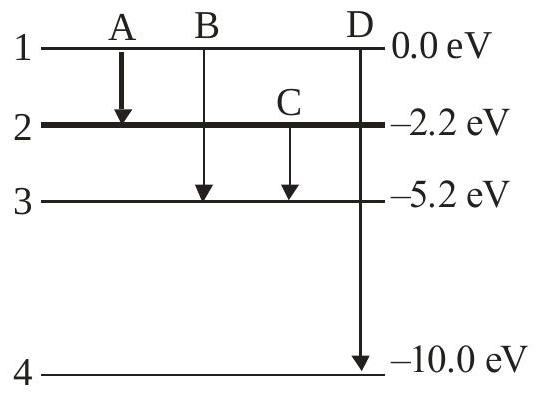

The energy levels of an atom is shown is figure. Which one of these transitions will result in the emission of a photon of wavelength 124.1 nm ? Given (

h = 6.62 \times 1 0^{- 34} Js

)

(A)B
(B)A
(C)C
(D)D✓ Correct

Answer: (D)

Solution

The emitted wavelength fixes the energy gap through

Δ E = \frac{h c}{λ}

, and with

h c = 1241 eV nm

a wavelength of

124.1 nm

corresponds to

Δ E = \frac{1241}{124.1} = 10 eV

. Reading the diagram, the drop from the

0.0 eV

level to the

- 10.0 eV

level is the only transition spanning

10 eV

. The

124.1 nm

photon comes from the transition ending on the lowest level, marked D in the diagram.

JEE Main · 2023 · 25 Jan 2023 · Shift 2 · Single correct option

Practise more: all JEE Main PYQs on Modern Physics →

More JEE Main questions on Modern Physics

7.9 MeV α-particle scatters from a target material of atomic number 79. From the given data the estimated diameter of nuclei of the target material is (approximately) ______ m.
[ $\frac{1}{4 π ϵ _{0}} = 9 \times 1 0^{9}$ Nm²/C² and electron charge $= 1.6 \times 1 0^{- 19}$ C]
JEE Main 2026View solution →
The minimum frequency of photon required to break a particle of mass 15.348 amu into $4 α$ particles is ______ kHz.
[mass of He nucleus = 4.002 amu, $1$ amu $= 1.66 \times 1 0^{- 27}$ kg, $h = 6.6 \times 1 0^{- 34}$ J.s and $c = 3 \times 1 0^{8}$ m/s]
JEE Main 2026View solution →
The smallest wavelength of Lyman series is 91 nm. The difference between the largest wavelengths of Paschen and Balmer series is nearly $____$ nm.
JEE Main 2026View solution →
Light is incident on a metallic plate having work function $110 \times 1 0^{- 20} J$ . If the produced photoelectrons have zero kinetic energy then the angular frequency of the incident light is ______ $rad / s$ . ( …
JEE Main 2026View solution →
The energy of an electron in an orbit of the Bohr's atom is $- 0.04 E_{0} eV$ where $E_{0}$ is the ground state energy. If L is the angular momentum of the electron in this orbit and h is the Planck's constant, then …
JEE Main 2026View solution →
A particle having electric charge $3 \times 1 0^{- 19} C$ and mass $6 \times 1 0^{- 27} kg$ is accelerated by applying an electric potential of 1.21 V . Wavelength of the matter wave associated with the particle is $α \times 1 0^{- 12} m$ . The va …
JEE Main 2026View solution →
