JEE Main · 2023 · 29 Jan 2023 · Shift 2 · Fluid Mechanics

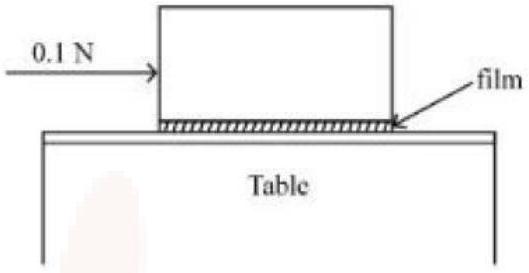

A metal block of base area

0.20 m^{2}

is placed on a table, as shown in figure. A liquid film of thickness 0.25 mm is inserted between the block and the table. The block is pushed by a horizontal force of 0.1 N and moves with a constant speed. If the viscosity of the liquid is

5.0 \times 1 0^{- 3} Pl

, the speed of block is ______

\times 1 0^{- 3} m / s

Answer: 25

Solution

The block moves steadily, so the push balances the viscous drag of the film,

F = η A \frac{v}{d}

. Solving for the speed,

v = \frac{F d}{η A} = \frac{0.1 \times 0.25 \times 1 0 ^{- 3}}{5.0 \times 1 0 ^{- 3} \times 0.20} = 0.025

m/s. Expressed in the required units this is

25 \times 1 0^{- 3}

m/s.
