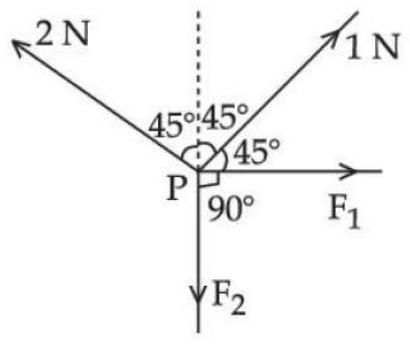

Four forces are acting at a point P in equilibrium as shown in figure. The ratio of force $\mathrm{F}_{1}$ to $\mathrm{F}_{2}$ is $1: \mathrm{x}$ where $\mathrm{x}=$ ______.

JEE Main · 2022 · 25 Jul 2022 · Shift 1 · Laws of Motion

Four forces are acting at a point P in equilibrium as shown in figure. The ratio of force

F_{1}

F_{2}

1 : x

where

x =

______.

Answer: 3

Solution

For equilibrium, resolve forces along x and y directions. From the geometry (angle

θ = 4 5^{\circ}

), taking components:

F_{1} = 2 - \frac{1}{2} = \frac{2 - 1}{2} = \frac{1}{2}

and

F_{2} = 2 + \frac{1}{2} = \frac{2 + 1}{2} = \frac{3}{2}

. Therefore,

\frac{F _{1}}{F _{2}} = \frac{1/ 2}{3/ 2} = \frac{1}{3}

, giving

x = 3

JEE Main · 2022 · 25 Jul 2022 · Shift 1 · Integer answer
