JEE Main · 2022 · 26 Jun 2022 · Shift 2 · Electromagnetic Induction

Two coils of self inductance

L_{1}

and

L_{2}

are connected in series combination having mutual inductance of the coils as M. The equivalent self inductance of the combination will be :

(A) $\frac{1}{L _{1}} + \frac{1}{L _{2}} + \frac{1}{M}$
(B) $L_{1} + L_{2} + M$
(C) $L_{1} + L_{2} + 2 M$
(D) $L_{1} + L_{2} - 2 M$ ✓ Correct

Answer: (D)

Solution

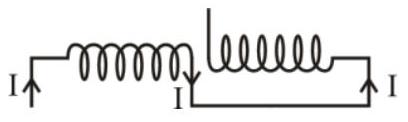

When two inductors are connected in series with mutual inductance M, the equivalent inductance depends on the relative direction of the currents. From the circuit diagram provided, the currents in both inductors flow in opposite directions through the mutual inductance region. Therefore, the mutual inductance subtracts:

L_{eq} = L_{1} + L_{2} - 2 M
