JEE Main · 2021 · 26 Aug 2021 · Shift 2 · Laws of Motion

WhatsApp Email

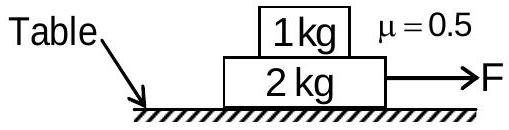

The coefficient of static friction between two blocks is 0.5 and the table is smooth. The maximum horizontal force that can be applied to move the blocks together is _____ N. (take

g = 10 ms^{- 2}

)

Answer: 15

Solution

The horizontal force acts on the lower

2

kg block, and the upper

1

kg block is carried along only by friction. For the upper block,

f = (1 kg) a \leq μ (1 kg) g = 0.5 \times 1 \times 10 = 5 N

so the largest acceleration the pair can share is

a = 5 m s^{- 2}

. The table is smooth, so the applied force has only to accelerate the full

3

kg:

F_{m a x} = (1 + 2) (5) = 15 N
