JEE Main · 2020 · 08 Jan 2020 · Shift 1 · Electromagnetic Induction

At time

t = 0

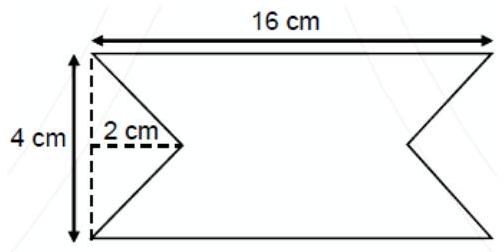

magnetic field of 1000 Gauss is passing perpendicularly through the area defined by the closed loop shown in the figure. If the magnetic field reduces linearly to 500 Gauss, in the next 5s, then induced EMF in the loops is:

(A) $28 μ V$
(B) $56 μ V$ ✓ Correct
(C) $48 μ V$
(D) $36 μ V$

Answer: (B)

Solution

By Faraday's law the magnitude of the induced emf is

ε = A ∣ d B / d t ∣

. From the figure the loop's effective area is

16 \times 4 - 4 \times 2 = 56 cm^{2} = 56 \times 1 0^{- 4} m^{2}

. The field falls from

1000

G to

500

G in

5

s, so

∣ d B / d t ∣ = \frac{500}{5} \times 1 0^{- 4} = 100 \times 1 0^{- 4}

T/s. Hence

ε = 56 \times 1 0^{- 4} \times 100 \times 1 0^{- 4} = 56 \times 1 0^{- 6}

V, that is

56 μ V

JEE Main · 2020 · 08 Jan 2020 · Shift 1 · Single correct option
