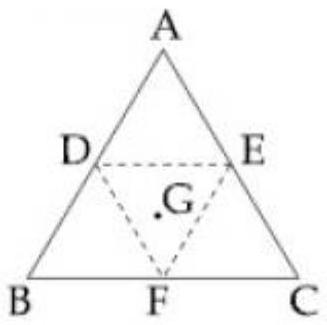

The equilateral triangle ABC is cut from a thin solid sheet of wood. (See figure) D, E and F are the mid points of its sides as shown and G is the centre of the triangle. The moment of inertia of the triangle about an axis passing through G and perpendicular to the plane of the triangle is I0. If the smaller triangle DEF is removed from ABC , the moment of inertia of the remaining figure about the same axis is I. Then:
(A)I=1615I0✓ Correct
(B)I=43I0
(C)I=169I0
(D)I=4I0
Answer: (A)
Solution
Treat the triangle as a uniform lamina and remember that for any family of geometrically similar plane shapes the moment of inertia about the corresponding axis scales as the fourth power of the linear size. The reason is that mass itself follows the area, which goes as the square of the side, and the characteristic distance from the axis contributes another square, so I∝mℓ2∝ℓ4. The inner triangle DEF is formed by joining the midpoints, so its side is exactly half that of ABC and its moment of inertia about the same central axis is (21)4I0=161I0. Removing it simply subtracts that share, leaving I=I0−161I0=1615I0.
JEE Main · 2019 · 11 Jan 2019 · Shift 1 · Single correct option
