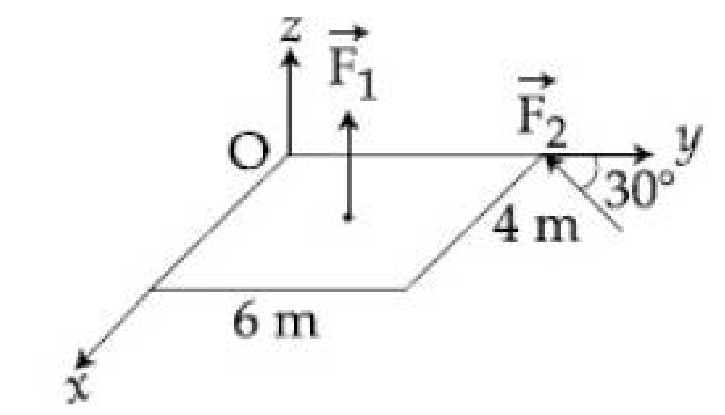

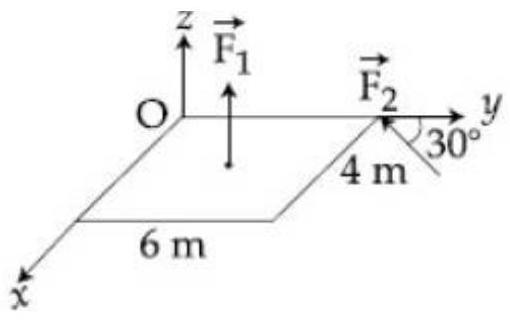

A slab is subjected to the two forces $\vec{F}_{1}$ and $\vec{F}_{2}$ of same magnitude $F$ as shown in the figure. Force $\vec{F}_{2}$ is in $X Y$ - plane while force $F_{1}$ acts along $z-$ axis at the point $(2 \vec{i}+3 \vec{j})$. The moment of these forces about point O will be:

(B) $(3 \hat{i}-2 \hat{j}-3 \hat{k}) F$

(A) $(3 \hat{i}+2 \hat{j}+3 \hat{k}) F$

(C) $(3 \hat{i}+2 \hat{j}-3 \hat{k}) F$

(D) $(3 \hat{i}+2 \hat{j}+3 \hat{k}) F$

JEE Main · 2019 · 11 Jan 2019 · Shift 1 · Rotational Mechanics

A slab is subjected to the two forces

F_{1}

and

F_{2}

of same magnitude

F

as shown in the figure. Force

F_{2}

is in

X Y

- plane while force

F_{1}

acts along

z -

axis at the point

(2 i + 3 j)

. The moment of these forces about point O will be:

Answer: (B)

Total torque about O:

τ_{O} = τ_{1} + τ_{2}

From the figure,

F_{2}

acts at position

6 \hat{i}

with components

- \frac{F}{2} \hat{i} + \frac{F 3}{2} \hat{j}

, and

F_{1} = F \hat{k}

acts at

2 \hat{i} + 3 \hat{j}

τ_{1} = (2 \hat{i} + 3 \hat{j}) \times F \hat{k} = 2 F \hat{j} \times \hat{k} + 3 F \hat{i} \times \hat{k} = - 2 F \hat{j} + 3 F \hat{i}

τ_{2} = 6 \hat{i} \times (- \frac{F}{2} \hat{i} + \frac{F 3}{2} \hat{j}) = 6 \hat{i} \times \frac{F 3}{2} \hat{j} = 3 F 3 \hat{k}

Wait, let me recalculate based on the source solution. Total torque:

τ_{O} = F (3 \hat{i} - 2 \hat{j} - 3 \hat{k})

JEE Main · 2019 · 11 Jan 2019 · Shift 1 · Single correct option
