A long straight wire carries a current,

I = 2

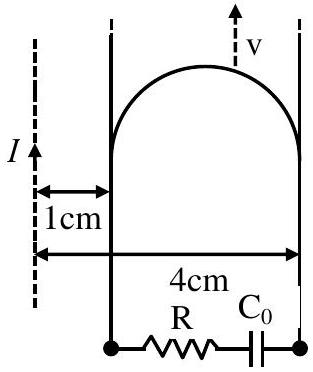

ampere. A semi-circular conducting rod is placed beside it on two conducting parallel rails of negligible resistance. Both the rails are parallel to the wire. The wire, the rod and the rails lie in the same horizontal plane, as shown in the figure. Two ends of the semi-circular rod are at distances 1 cm and 4 cm from the wire. At time

t = 0

, the rod starts moving on the rails with a speed

v = 3.0

m/s (see the figure).

A resistor

R = 1.4Ω

and a capacitor

C_{0} = 5.0 μ

F are connected in series between the rails. At time

t = 0, C_{0}

is uncharged. Which of the following statement(s) is(are) correct?

[

μ_{0} = 4 π \times 1 0^{- 7}

SI units. Take

ln 2 = 0.7

]

(A)Maximum current through $R$ is $1.2 \times 1 0^{- 6}$ ampere✓ Correct
(B)Maximum current through $R$ is $3.8 \times 1 0^{- 6}$ ampere
(C)Maximum charge on capacitor $C_{0}$ is $8.4 \times 1 0^{- 12}$ coulomb✓ Correct
(D)Maximum charge on capacitor $C_{0}$ is $2.4 \times 1 0^{- 12}$ coulomb

Answer: (A), (C)

Solution

EMF induced in the semi-circular rod moving through the magnetic field of the wire:

E = \int_{0.01}^{0.04} \frac{μ _{0} I}{2 π r} v d r = \frac{μ _{0} I v}{2 π} ln (\frac{4}{1}) = \frac{μ _{0} I v}{2 π} \cdot 2 ln 2 = \frac{μ _{0} I v l n 2}{π}

Substituting values:

E = \frac{4 π \times 1 0 ^{- 7} \times 2 \times 3 \times 0.7}{π} = 24 \times 7 \times 1 0^{- 8} = 168 \times 1 0^{- 8}

V.

Maximum current (at t = 0, when capacitor is uncharged):

i_{m a x} = \frac{E}{R} = \frac{168 \times 1 0 ^{- 8}}{1.4} = 120 \times 1 0^{- 8} = 1.2 \times 1 0^{- 6}

A. ✓ (A)

Maximum charge on capacitor (when fully charged):

Q_{m a x} = C_{0} E = 5 \times 1 0^{- 6} \times 168 \times 1 0^{- 8} = 840 \times 1 0^{- 14} = 8.4 \times 1 0^{- 12}

C. ✓ (C)
