JEE Main · 2024 · 04 Apr 2024 · Shift 1 · Modern Physics

WhatsApp Email

Which figure shows the correct variation of applied potential difference (V) with photoelectric current (I) at two different intensities of light (

I_{1} < I_{2}

) of same wavelengths :

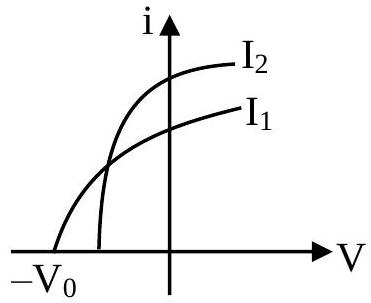

(A)(see structure)

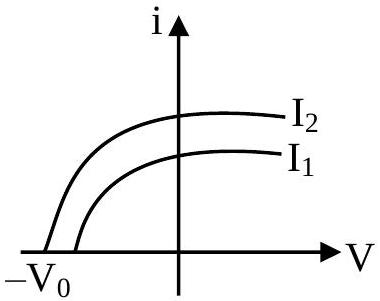

(B)(see structure)

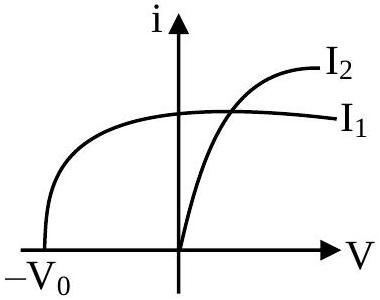

(C)(see structure)
✓ Correct

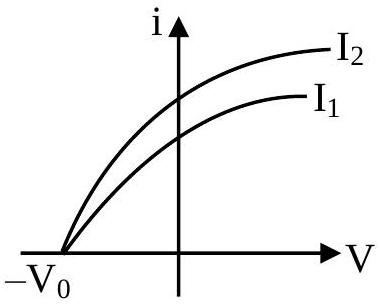

(D)(see structure)

Answer: (C)

Solution

Stopping potential depends only on frequency (wavelength), not intensity. Both beams have the same wavelength

\Rightarrow

same stopping potential

- V_{0}

(same

x

-intercept).

Saturation current is proportional to intensity, so with

I_{2} > I_{1}

the

I_{2}

curve saturates at a higher current. The correct graph has a common

- V_{0}

and the

I_{2}

plateau above the

I_{1}

plateau

\Rightarrow

option C.
