JEE Main · 2024 · 05 Apr 2024 · Shift 2 · Electrostatics

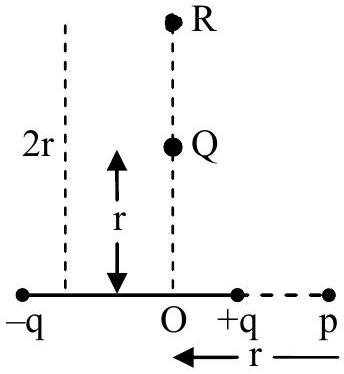

The electric field at point p due to an electric dipole is E. The electric field at point R on equitorial line will be

\frac{E}{x}

. The value of

x

:

Answer: 16

Solution

On the axial line at distance

r

:

E_{P} = \frac{2 k p}{r ^{3}} = E

.
On the equatorial line at distance

2 r

:

E_{R} = \frac{k p}{( 2 r ) ^{3}} = \frac{k p}{8 r ^{3}}

.
Since

k p = \frac{E r ^{3}}{2}

,

E_{R} = \frac{E r ^{3} /2}{8 r ^{3}} = \frac{E}{16}

So

x = 16

.

JEE Main · 2024 · 05 Apr 2024 · Shift 2 · Integer answer
