JEE Main · 2024 · 30 Jan 2024 · Shift 2 · Geometrical Optics

WhatsApp Email

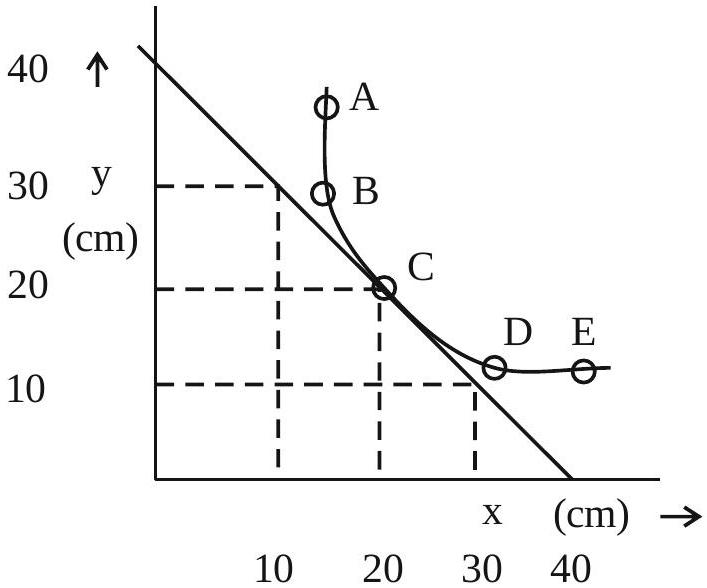

In an experiment to measure the focal length (f) of a convex lens, the magnitude of object distance ( x ) and the image distance ( y ) are measured with reference to the focal point of the lens. The y-x plot is shown in figure.

The focal length of the lens is ______ cm .

Answer: 20

Solution

When object and image distances are measured from the respective focal points of a convex lens, Newton's lens formula applies:

x y = f^{2}

where

x

is the object distance beyond the focus and

y

is the image distance beyond the focus, so the y-x graph is a rectangular hyperbola.

Reading a point on the plotted curve where

x = 20 cm

gives

y = 20 cm

f^{2} = x y = 20 \times 20 = 400

f = 20 cm
