JEE Main · 2024 · 31 Jan 2024 · Shift 2 · Laws of Motion

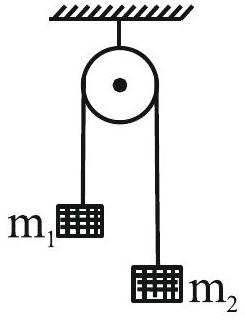

A light string passing over a smooth light fixed pulley connects two blocks of masses

m_{1}

and

m_{2}

. If the acceleration of the system is

g /8

, then the ratio of masses is

(A) $\frac{9}{7}$ ✓ Correct
(B) $\frac{8}{1}$
(C) $\frac{4}{3}$
(D) $\frac{5}{3}$

Answer: (A)

Solution

For an Atwood machine, the acceleration of the system is

a = \frac{( m _{1} - m _{2} ) g}{m _{1} + m _{2}}

Setting

a = g /8

\frac{m _{1} - m _{2}}{m _{1} + m _{2}} = \frac{1}{8}

8 m_{1} - 8 m_{2} = m_{1} + m_{2}

7 m_{1} = 9 m_{2}

\frac{m _{1}}{m _{2}} = \frac{9}{7}

JEE Main · 2024 · 31 Jan 2024 · Shift 2 · Single correct option

Practise more: all JEE Main PYQs on Laws of Motion →
