JEE Main · 2026 · 21 Jan 2026 · Shift 2 · Redox Reactions and Electrochemistry

For a closed circuit Daniell cell, which of the following plots is the accurate one at a given temperature?

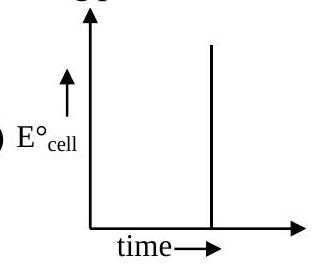

(A)(see structure)

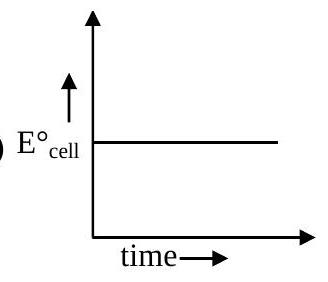

(B)(see structure)
✓ Correct

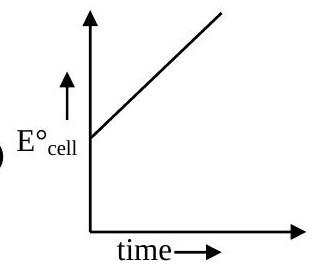

(C)(see structure)
(D)(see structure)

Answer: (B)

Solution

At a fixed temperature the standard cell potential

E_{cell}^{\circ}

is fixed entirely by the standard electrode potentials of the zinc and copper couples, quantities that depend only on temperature. It carries no dependence on how long the cell runs or on the changing half-cell concentrations, since those effects enter through the Nernst term and belong to

E_{cell}

, not to

E_{cell}^{\circ}

. A plot of

E_{cell}^{\circ}

against time is therefore a straight horizontal line of constant height.
