JEE Main · 2026 · 21 Jan 2026 · Shift 1 · Rotational Mechanics

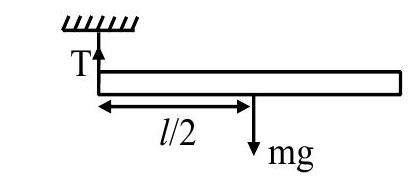

A uniform rod of mass m and length

l

suspended by means of two identical inextensible light strings as shown in figure. Tension in one string immediately after the other string is cut, is ______. (g acceleration due to gravity)

(A) $mg /2$
(B) $mg /4$ ✓ Correct
(C) $mg /3$
(D)mg

Answer: (B)

Solution

Immediately after one string is cut, the end still held by the remaining vertical string has zero acceleration along that string, so the centre falls with

a = \frac{l}{2} α

. Taking torque about the centre,

T \cdot \frac{l}{2} = \frac{m l ^{2}}{12} α

, which gives

α = \frac{6 T}{m l}

and hence

a = \frac{3 T}{m}

. Newton's law for the centre,

m g - T = ma

, then reads

m g - T = 3 T

, so the tension is

T = \frac{m g}{4}
