CBSE Class 12 · 2008 · ElectrostaticsVery Short Answer

Draw an equipotential surface for a system consisting of two charges

Q

- Q

separated by a distance

r

in air.

Solution

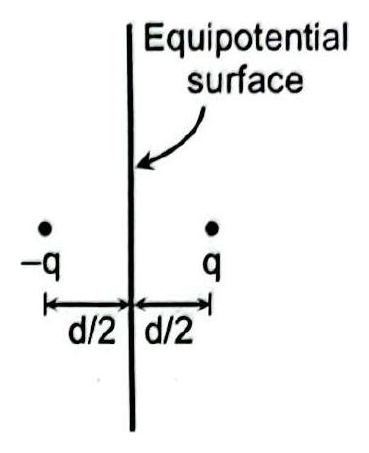

Around each charge the equipotential surfaces are closed curves (circles in a plane section), crowded near the charges and more widely spaced farther away. The plane perpendicular to the line joining the charges and passing through its mid-point is at zero potential, since the potentials of

+ Q

and

- Q

cancel there.
