CBSE Class 12 · 2004 · ElectrostaticsShort Answer

WhatsApp Email

State Gauss's theorem in electrostatics. Using this theorem, derive an expression for the electric field intensity due to an infinite plane sheet of charge of charge density

σ C m^{- 2}

Solution

Gauss's theorem — the net flux through any closed surface is

\frac{1}{ε _{0}}

times the charge enclosed:

\oint E \cdot d S = \frac{q _{enc}}{ε _{0}}

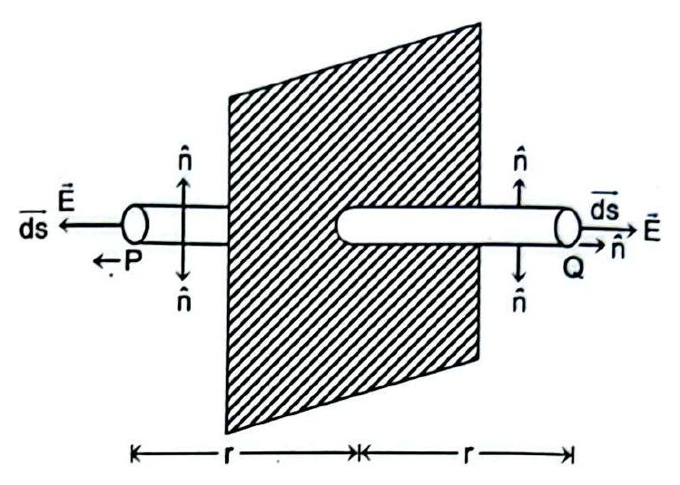

Take a cylindrical pillbox of cross-section

A

piercing the sheet symmetrically.

E

is normal to the sheet and equal on both faces; the curved surface carries no flux:

2 E A = \frac{σ A}{ε _{0}}

E = \frac{σ}{2 ε _{0}}

independent of the distance from the sheet.

CBSE Class 12 Board · 2004 · Subjective
