(i) Draw the graphs showing the variation of inductive reactance and capacitive reactance with the frequency of the applied a.c. source. (ii) Can the voltage drop across the inductor or the capacitor in a series LCR circuit be greater than the applied voltage of the a.c. source? Justify your answer.
Answer: (i) XL=2πfL rises linearly with f; XC=2πfC1 falls as 1/f. (ii) Yes, it can.
Solution

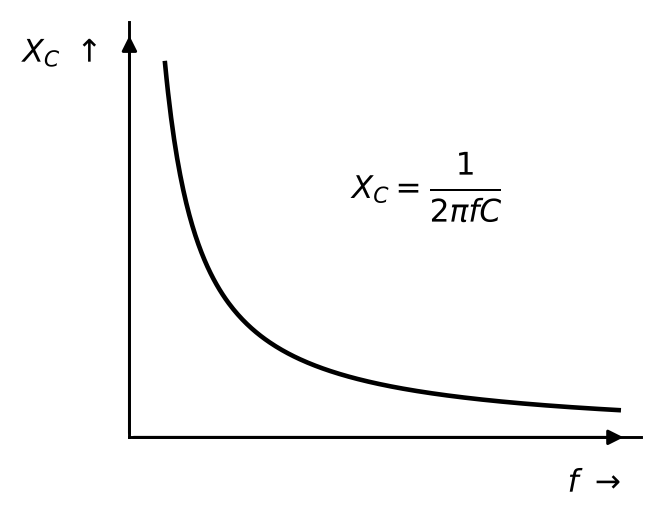

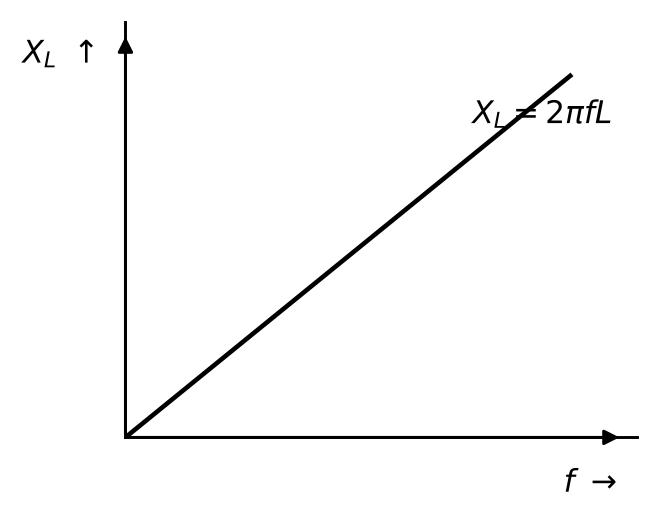

(i) Inductive reactance XL=2πfL is directly proportional to frequency, so its graph is a straight line through the origin. Capacitive reactance XC=2πfC1 is inversely proportional to frequency, so its graph is a rectangular hyperbola falling with f. (ii) Yes. The voltages across L and C are not in phase with VR — VL leads and VC lags the current by 2π. They add as phasors, not as ordinary numbers, so an individual reactive voltage can exceed the source voltage while the phasor sum VR2+(VL−VC)2 still equals it.
