CBSE Class 12 · 2004 · SemiconductorsVery Short Answer

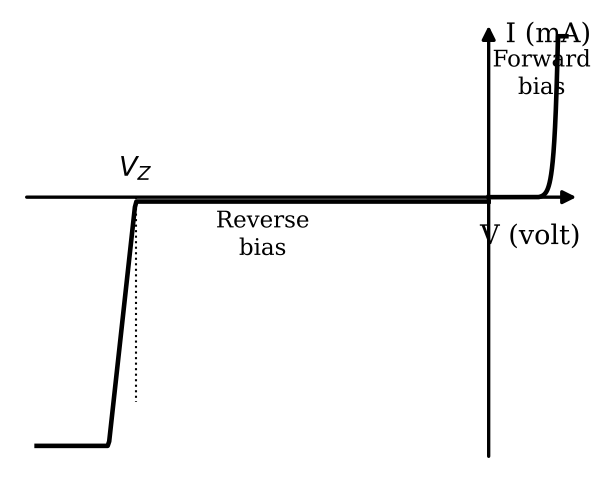

Draw the voltage-current characteristic of a zener diode.

Solution

A zener diode behaves like an ordinary diode in forward bias (current rises after the knee voltage).
In reverse bias the current stays small until the reverse voltage reaches the zener breakdown voltage

V_{z}

, where the reverse current increases sharply while the voltage across the diode remains almost constant at

V_{z}

Sharp reverse breakdown at V_{z} is the key feature.
