CBSE Class 12 · 2014 · SemiconductorsShort Answer

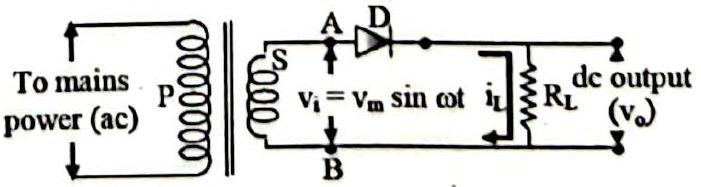

Explain, with the help of a circuit diagram, the working of a p-n junction diode as a half-wave rectifier.

Solution

Connect the ac source through a diode to a load resistance

R_{L}

.
During the half-cycle that forward biases the diode it conducts, and a current flows through

R_{L}

giving an output voltage.
During the next half-cycle the diode is reverse biased and does not conduct, so no output appears.

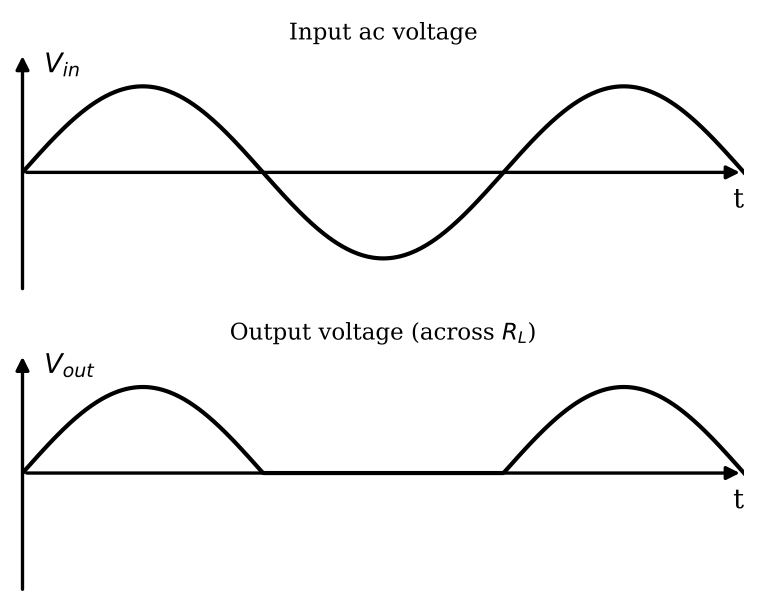

Thus output is obtained during alternate half-cycles only — a unidirectional (pulsating) dc.

Conducts one half-cycle only \Rightarrow half-wave rectified output.
