JEE Main · 2022 · 26 Jun 2022 · Shift 2 · Current Electricity

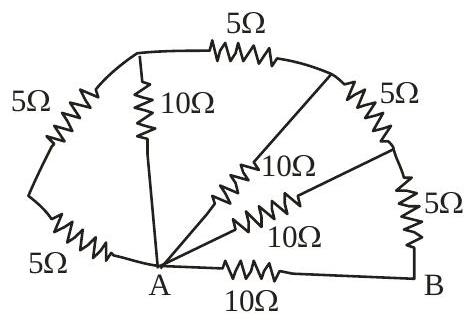

The equivalent resistance between points A and B in the given network is :

(A) $65Ω$
(B) $20Ω$
(C) $5Ω$ ✓ Correct
(D) $2Ω$

Answer: (C)

Solution

By analyzing the symmetry and simplifying the network (using series and parallel combinations, or recognizing a balanced Wheatstone bridge configuration), the equivalent resistance between points A and B is found to be

5Ω
