JEE Main · 2022 · 26 Jun 2022 · Shift 1 · Current Electricity

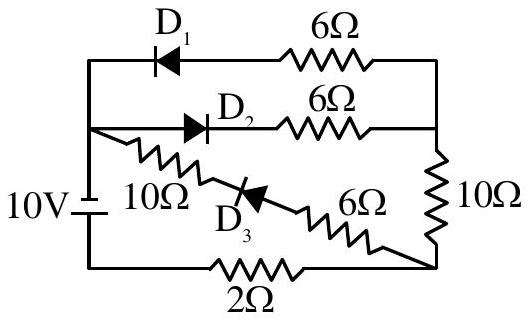

As per the given circuit, the value of current through the battery will be ____ A.

Answer: 1

Solution

From the circuit diagram, the resistors are arranged such that the net equivalent resistance is

R_{net} = 10Ω

.

Using Ohm's law:

V = I R_{net}

10 = I \times 10

I = 1 A

Therefore, the current through the battery is 1 A.
