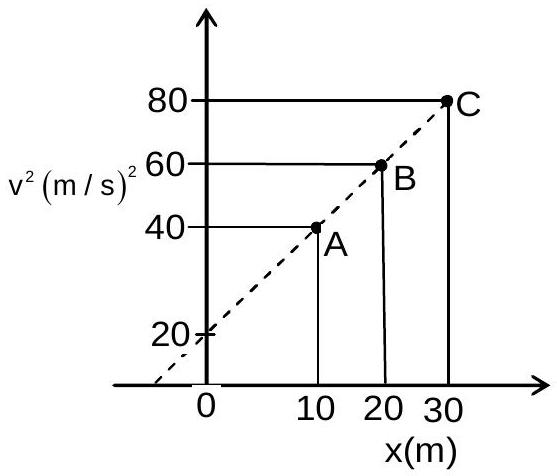

A particle is moving with constant acceleration 'a'. Following graph shows v2 versus x (displacement) plot. The acceleration of the particle is ______ m/s2.
Answer: 1
Solution
For constant acceleration v2=u2+2ax, which is a straight line in the v2 versus x plot with slope 2a. The plotted points (10,40) and (20,60) give
2a=20−1060−40=1020=2,
so a=1m/s2.
JEE Main · 2021 · 31 Aug 2021 · Shift 2 · Integer answer
