JEE Main · 2019 · 11 Jan 2019 · Shift 2 · Circle

A circle cuts a chord of length 4a on the

x

-axis and passes through a point on the

y

-axis, distant 2b from the origin. Then the locus of the center of this circle, is:

(A)a hyperbola
(B)an ellipse
(C)a straight line
(D)a parabola✓ Correct

Answer: (D)

Solution

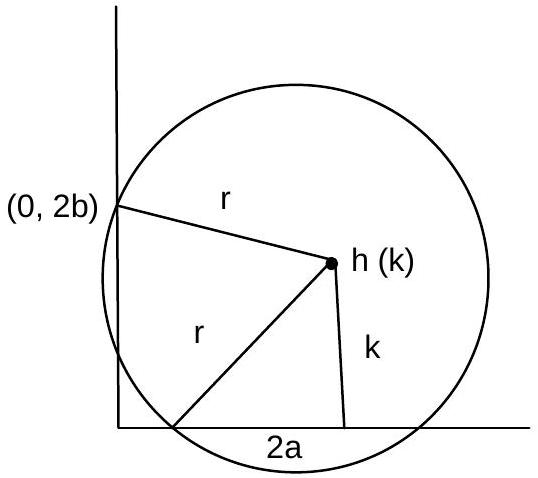

Let the centre be

(h, k)

with radius

r

. The chord cut on the

x

-axis has length

4 a

, so its half-length

2 a

and the distance

k

from the centre to the axis satisfy

k^{2} + (2 a)^{2} = r^{2}

. The circle passes through

(0, 2 b)

, so

h^{2} + (k - 2 b)^{2} = r^{2}

. Equating,

h^{2} + (k - 2 b)^{2} = k^{2} + 4 a^{2}

, which reduces to

h^{2} = 4 bk - 4 b^{2} + 4 a^{2}

. Replacing

(h, k)

(x, y)

, the locus is

x^{2} = 4 (b y - b^{2} + a^{2})

, a parabola.

JEE Main · 2019 · 11 Jan 2019 · Shift 2 · Single correct option

Practise more: all JEE Main PYQs on Circle →
