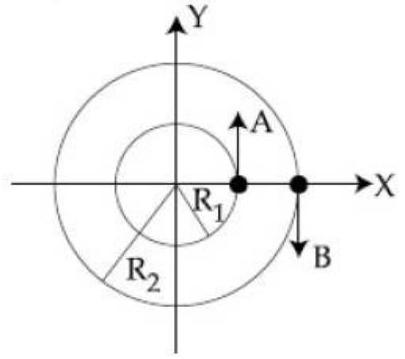

Two particles $A, B$ are moving on two concentric circles of radii $R_{1}$ and $R_{2}$ with equal angular speed $\omega$. At $\mathrm{t}=0$, their positions and direction of motion are shown in the figure : The relative velocity $\overrightarrow{V_{A}}-\overrightarrow{V_{B}}$ at $t=\frac{\pi}{2 \omega}$ is given by :

(C) $\omega\left(R_{2}-R_{1}\right) \hat{i}$

(A) $\omega\left(R_{1}+R_{2}\right) \hat{i}$

(B) $-\omega\left(R_{1}+R_{2}\right) \hat{i}$

(D) $\omega\left(R_{1}-R_{2}\right) \hat{i}$

JEE Main · 2019 · 12 Jan 2019 · Shift 2 · Kinematics

Two particles

A, B

are moving on two concentric circles of radii

R_{1}

and

R_{2}

with equal angular speed

ω

. At

t = 0

, their positions and direction of motion are shown in the figure :

The relative velocity

V_{A} - V_{B}

t = \frac{π}{2 ω}

is given by :

(A) $ω (R_{1} + R_{2}) \hat{i}$
(B) $- ω (R_{1} + R_{2}) \hat{i}$
(C) $ω (R_{2} - R_{1}) \hat{i}$ ✓ Correct
(D) $ω (R_{1} - R_{2}) \hat{i}$

Answer: (C)

Solution

After a time

t = \frac{π}{2 ω}

each particle has turned through

ω t = \frac{π}{2}

, a quarter circle. Both then sit on the positive

y

-axis moving in the

- x

direction, with

v_{A} = - ω R_{1} \hat{i}

and

v_{B} = - ω R_{2} \hat{i}

. The relative velocity is

v_{A} - v_{B} = - ω R_{1} \hat{i} + ω R_{2} \hat{i} = ω (R_{2} - R_{1}) \hat{i}

JEE Main · 2019 · 12 Jan 2019 · Shift 2 · Single correct option

Practise more: all JEE Main PYQs on Kinematics →
