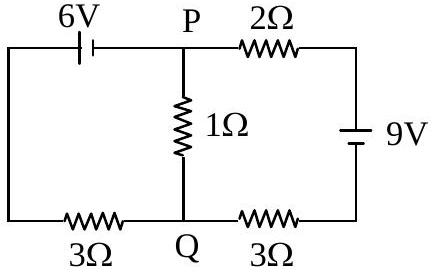

In the circuit shown, the current in the 1Ω resistor is :
(A)0 A
(B)0.13 A, from Q to P✓ Correct
(C)0.13 A, from P to Q
(D)1.3 A, from P to Q
Answer: (B)
Solution
Set the potential at Q to zero and let the junction P sit at potential V, then apply Kirchhoff's current law there: 3V+6+1V+5V−9=0. Clearing denominators and solving gives V=−233≈−0.13V. The current through the 1Ω resistor is ∣V∣/1≈0.13A, and since P sits below Q in potential, that current runs from Q to P.
JEE Main · 2015 · 04 Apr 2015 · Offline · Single correct option
