JEE Advanced · 2021 · 03 Oct 2021 · Paper 1 · Fluid Mechanics

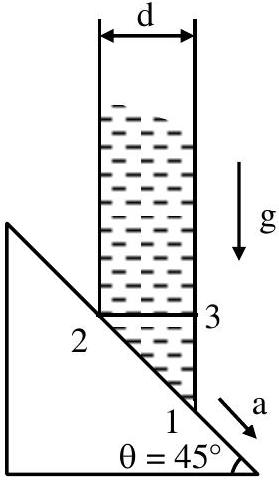

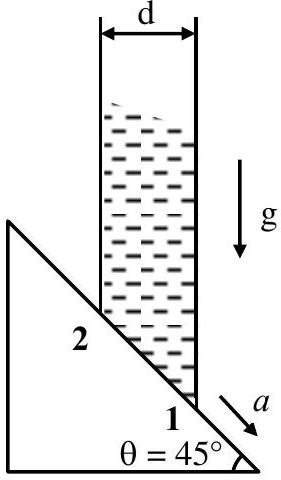

In the accelerating frame of the tube, there is a pseudo-force $ma$ upward along the incline.

Effective gravity components: perpendicular to base = $g\cos 45°-a\cos 45°=\frac{g-a}{\sqrt{2}}$; parallel to base = $g\sin 45°-a\sin 45°=\frac{g-a}{\sqrt{2}}$.

Wait, let me reconsider. The tube accelerates down the incline with acceleration $a$.

In the tube's frame, pseudo-force $ma$ acts up the incline. Components:

• Perpendicular to base (vertical): $g-\frac{a}{\sqrt{2}}$
• Parallel to base (horizontal): $\frac{a}{\sqrt{2}}$

Pressure difference: $P_1-P_2=\rho d\left[g-\frac{2a}{\sqrt{2}}\right]=\rho gd\left[1-\sqrt{2}\frac{a}{g}\right]$

So $\beta =1-\sqrt{2}\frac{a}{g}$.

For (A): If $a=g/\sqrt{2}$, then $\beta =1-\sqrt{2}\cdot \frac{1}{\sqrt{2}}=0$. ✓

For (C): If $a=g/2$, then $\beta =1-\sqrt{2}\cdot \frac{1}{2}=1-\frac{\sqrt{2}}{2}=\frac{2-\sqrt{2}}{2}=\frac{\sqrt{2}(\sqrt{2}-1)}{2}$. Hmm, this doesn't match. Let me check the source solution.

From the source: $\beta =\frac{\sqrt{2}-1}{\sqrt{2}}$ when $a=g/2$. Let me verify: $1-\sqrt{2}\cdot \frac{1}{2}=1-\frac{1}{\sqrt{2}}=\frac{\sqrt{2}-1}{\sqrt{2}}$. ✓
