Two identical moving coil galvanometer have resistance and full scale deflection at current. One of them is converted into a voltmeter of 100 mV full scale reading and the other into an Ammeter of 1 mA full scale current using appropriate resistors. These are then used to measure the voltage and current in the Ohm's law experiment with resistor by using an ideal cell. Which of the following statement(s) is/are correct ?
  1. (A)The measured value of R will be .✓ Correct
  2. (B)The resistance of the Voltmeter will be .
  3. (C)The resistance of the Ammeter will be (round off to decimal place)✓ Correct
  4. (D)If the ideal cell is replaced by a cell having internal resistance of then the measured value of R will be more than .

Answer: (A), (C)

Solution

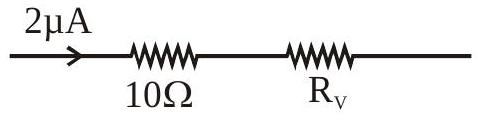

Voltmeter conversion:


Option (B) is incorrect (states 100 kΩ).

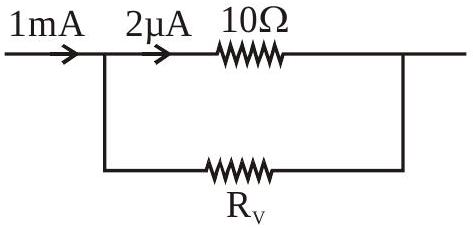

Ammeter conversion:


Option (C) is correct.

Measurement with ideal cell:
Total voltmeter resistance = 50000 Ω
Ammeter resistance = 0.02 Ω

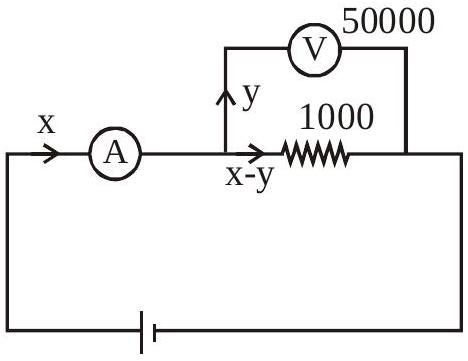

The circuit has voltmeter (50000 Ω) in parallel with 1000 Ω resistor, and ammeter (0.02 Ω) in series.

Using voltage divider and current measurement:

Option (A) is correct (978 Ω < R < 982 Ω).

Option (D): With internal resistance, the measured value would be less than 1000 Ω, not more. Incorrect.
