JEE Advanced · 2012 · 08 Apr 2012 · Paper 1 · Current Electricity

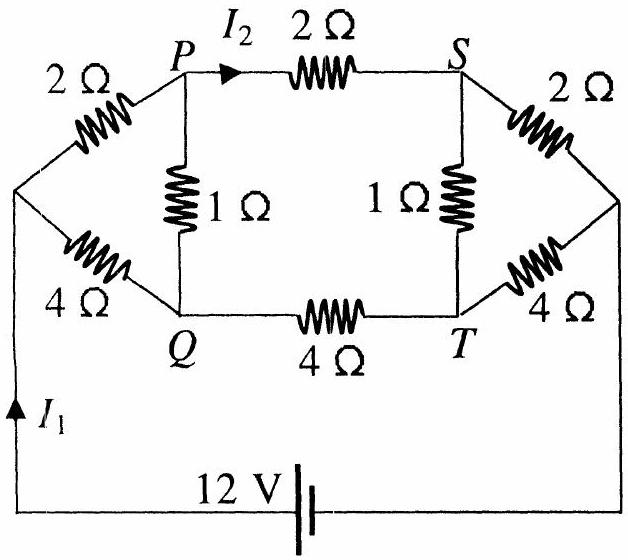

For the resistance network shown in the figure, choose the correct option(s).

(A)The current through $P Q$ is zero.✓ Correct
(B) $I_{1} = 3 A$ .✓ Correct
(C)The potential at $S$ is less than that at $Q$ .✓ Correct
(D) $I_{2} = 2 A$ .✓ Correct

Answer: (A), (B), (C), (D)

Solution

The network forms a Wheatstone bridge with nodes

P

and

Q

equipotential, and nodes

S

and

T

equipotential. No current flows through

P Q

S T

. The current

I_{1} = \frac{12}{4} = 3

A. The current

I_{2} = I_{1} \times \frac{12}{6 + 12} = 3 \times \frac{12}{18} = 2

A. The potential at

S

is less than at

Q

due to the voltage drop. All options are correct.

JEE Advanced · 2012 · 08 Apr 2012 · Paper 1 · One or more correct options
