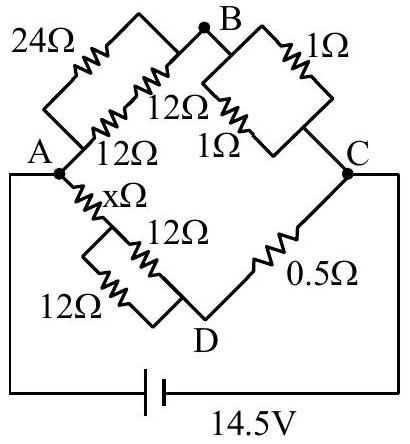

The value of unknown resistance ( x ) for which the potential difference between B and D will be zero in the arrangement shown, is :

(A) $3Ω$
(B) $9Ω$
(C) $6Ω$ ✓ Correct
(D) $42Ω$

Answer: (C)

Solution

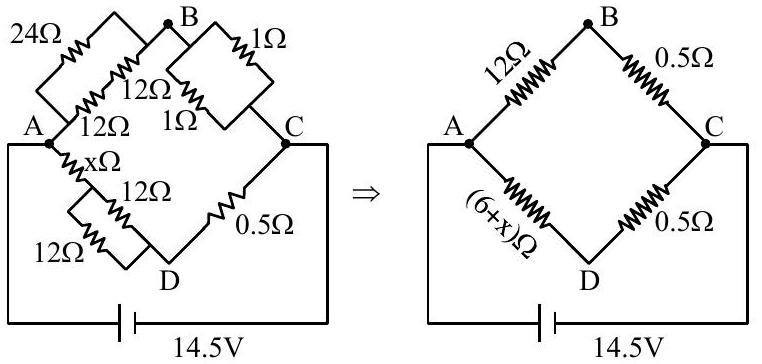

The potential difference between B and D is zero when the bridge is balanced, so no current flows through the BD branch. Applying the Wheatstone balance condition (equal ratios of the resistances in the two pairs of arms) and solving for the unknown gives

x = 6 Ω.
