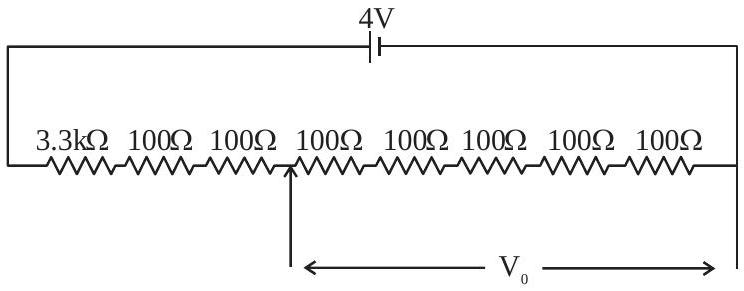

A potential divider circuit is shown in figure. The output voltage is
  1. (A)4 V
  2. (B)2 mV
  3. (C)0.5 V✓ Correct
  4. (D)12 mV

Answer: (C)

Solution

Total resistance in the loop: .

Current: .

is taken across the last five of the seven 100 resistors (500 ): .

JEE Main · 2024 · 30 Jan 2024 · Shift 1 · Single correct option

Practise more: all JEE Main PYQs on Current Electricity →
