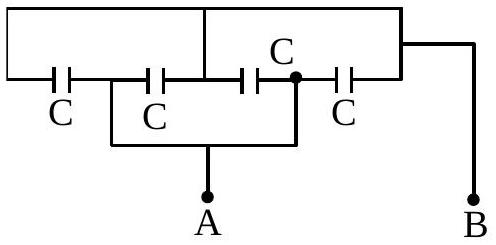

Four capacitor each of capacitance $16 \mu \text{F}$ are connected as shown in the figure. The capacitance between points A and B is : ______ (in $\mu \text{F}$).

JEE Main · 2025 · 04 Apr 2025 · Shift 1 · Capacitance

Four capacitor each of capacitance

16 μ F

are connected as shown in the figure. The capacitance between points A and B is : ______ (in

μ F

Answer: 64

Solution

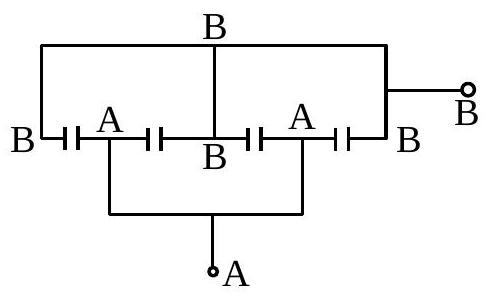

Tracing the connections, the top rail forms one common node joined to terminal B, while the lower junctions form the other common node joined to terminal A. Each of the four capacitors is connected directly across these same two nodes, so all four are in parallel. The equivalent capacitance is

C_{A B} = 4 C = 4 \times 16 = 64 μ F .

The capacitance between A and B is

64 μ

JEE Main · 2025 · 04 Apr 2025 · Shift 1 · Integer answer
