JEE Main · 2025 · 04 Apr 2025 · Shift 2 · Capacitance

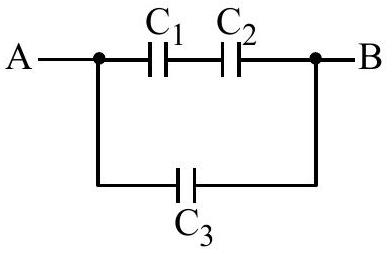

Three parallel plate capacitors

C_{1}, C_{2}

and

C_{3}

each of capacitance

5 μ F

are connected as shown in figure. The effective capacitance between points A and B , when the space between the parallel plates of

C_{1}

capacitor is filled with a dielectric medium having dielectric constant of 4 , is :

(A) $22.5 μ F$
(B) $7.5 μ F$
(C) $9 μ F$ ✓ Correct
(D) $30 μ F$

Answer: (C)

Solution

Filling

C_{1}

with the dielectric raises it to

C_{1} = 4 \times 5 = 20 μ F

. Along the upper path

C_{1}

and

C_{2}

carry the same charge in series, combining to

\frac{20 \times 5}{20 + 5} = 4 μ F

. This series pair is connected across the same points A and B as

C_{3}

, so it adds in parallel with

C_{3} = 5 μ F

, giving an effective capacitance of

4 + 5 = 9 μ F

JEE Main · 2025 · 04 Apr 2025 · Shift 2 · Single correct option
