The output waveform of the given logical circuit for the following inputs A and B as shown below, is :

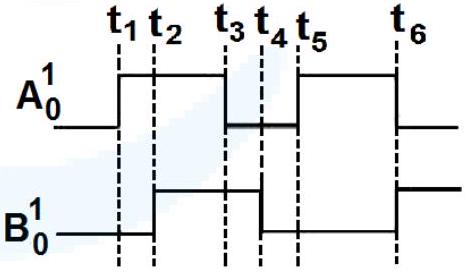

Structure Inputs
Inputs

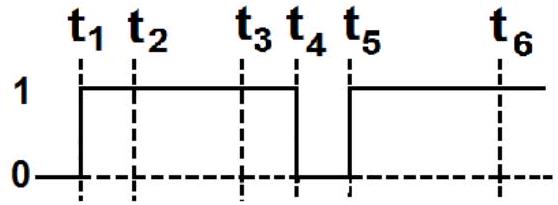

  1. (A)(see structure)

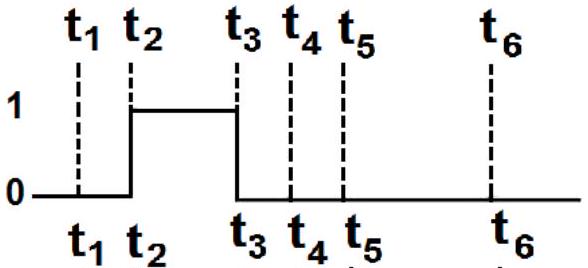

  2. (B)(see structure)

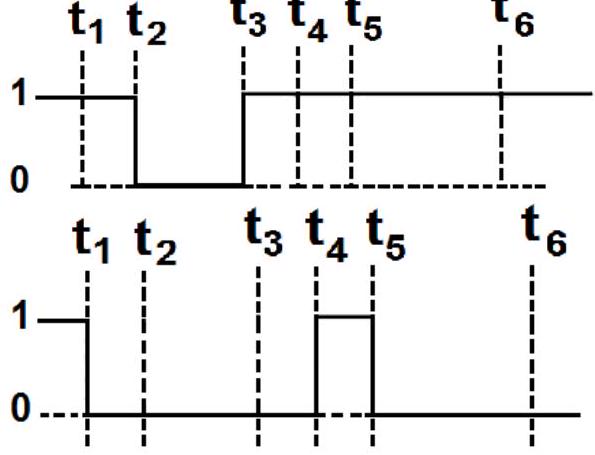

  3. (C)(see structure)
  4. (D)(see structure)
    ✓ Correct

Answer: (D)

Solution

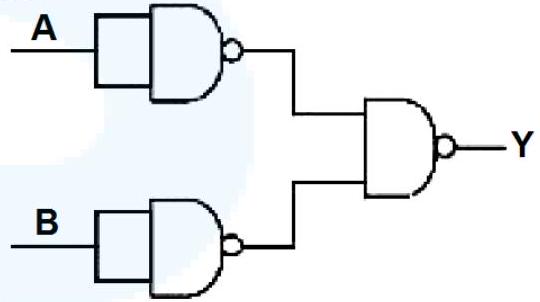

Each of the first two gates is a NAND with its two inputs tied together, so the upper gate delivers and the lower gate delivers . These feed the third NAND, whose output is by De Morgan's law, so the network behaves as a single OR gate. Following the two input trains through this rule, the output stands high in every interval where A or B (or both) is at logic and drops to zero only across the single stretch where A and B are simultaneously low. The output is thus the logical sum of the two inputs, high throughout except in that one common-low interval.
