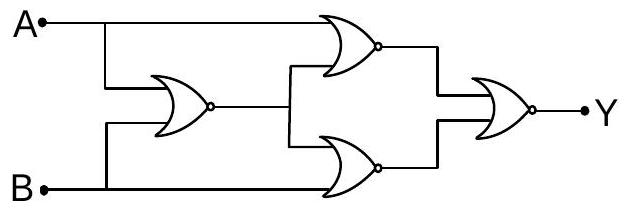

Four NOR gates are connected as shown in figure. The truth table for the given figure is:
  1. (A)A | B | Y
    0 | 0 | 1
    0 | 1 | 0
    1 | 0 | 0
    1 | 1 | 1
    ✓ Correct
  2. (B)A | B | Y
    0 | 0 | 1
    0 | 1 | 0
    1 | 0 | 1
    1 | 1 | 0
  3. (C)A | B | Y
    0 | 0 | 0
    0 | 1 | 1
    1 | 0 | 0
    1 | 1 | 1
  4. (D)A | B | Y
    0 | 0 | 0
    0 | 1 | 1
    1 | 0 | 1
    1 | 1 | 0

Answer: (A)

Solution

The first gate takes both inputs, giving . This output is fed to two further NOR gates whose other inputs are and respectively, so

and the last gate gives .
For , : , so , and .
For , : , so , and .
For , : , so , and .
For , : , so , and .
The circuit gives output when the two inputs are alike and when they differ.
