JEE Main · 2016 · 03 Apr 2016 · Offline · Semiconductors

WhatsApp Email

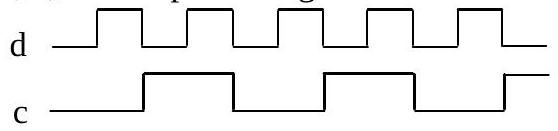

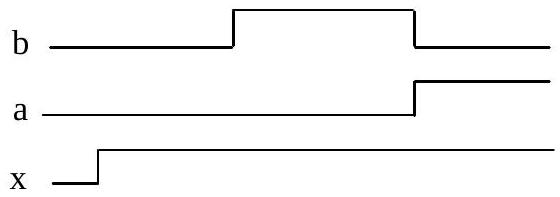

If are inputs to a gate and x is its output, then, as per the following time graph, the gate is:
  1. (A)AND
  2. (B)OR✓ Correct
  3. (C)NAND
  4. (D)NOT

Answer: (B)

Solution

Reading the waveforms, the output is high whenever any one of the inputs a, b, c or d is high, and drops low only when all four inputs are low together. That is exactly the behaviour of a multi-input OR gate.

JEE Main · 2016 · 03 Apr 2016 · Offline · Single correct option

Practise more: all JEE Main PYQs on Semiconductors →
