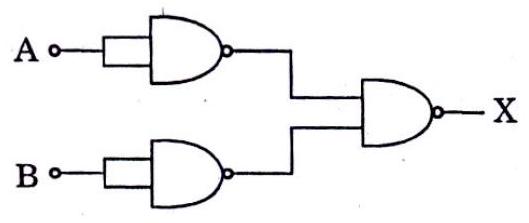

The combination of gates shown below yields
  1. (A)OR gate✓ Correct
  2. (B)NOT gate
  3. (C)XOR gate
  4. (D)NAND gate

Answer: (A)

Solution

Tracing the inputs through the combination and tabulating the output for all four input pairs, the output is only when both inputs are and whenever at least one input is . That truth table is exactly the behaviour of an OR gate.
