JEE Main · 2025 · 29 Jan 2025 · Shift 1 · Semiconductors

WhatsApp Email

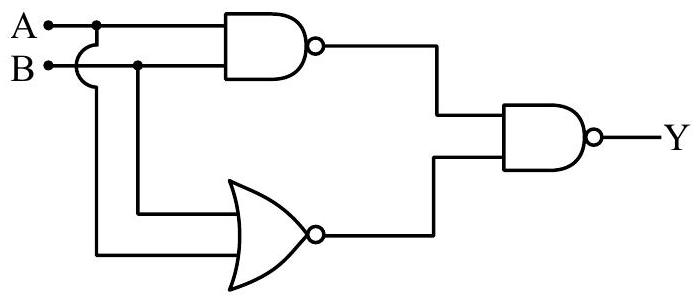

For the circuit shown above, equivalent GATE is :
  1. (A)OR gate✓ Correct
  2. (B)NOT gate
  3. (C)AND gate
  4. (D)NAND gate

Answer: (A)

Solution

Label the two inputs A and B. From the circuit, the top gate is a NAND of A and B, giving . A second branch passes A and B through an OR gate followed by a NOT gate, giving (a NOR of A and B). These two signals, and , are fed into the final NAND gate, so


By De Morgan's theorem,


Since is always contained in , this simplifies to


Checking all four input combinations confirms is 0 only when both A and B are 0, and 1 otherwise — the truth table of an OR gate.

JEE Main · 2025 · 29 Jan 2025 · Shift 1 · Single correct option
