JEE Main · 2025 · 24 Jan 2025 · Shift 2 · Semiconductors

WhatsApp Email

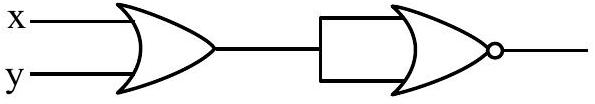

The output of the circuit is low (zero) for :
(A)
(B)
(C)
(D)

Choose the correct answer from the options given below :
  1. (A)(A), (C) and (D) only
  2. (B)(A), (B) and (C) only
  3. (C)(B), (C) and (D) only✓ Correct
  4. (D)(A), (B) and (D) only

Answer: (C)

Solution

Working through the given combination of logic gates for each input pair and tabulating the output:
XYOutput
001
010
100
110

The overall circuit therefore behaves as a NOR gate on inputs X and Y: the output is high only when both inputs are 0, and low for every other combination.

The output is low (zero) for the input pairs (B) ; (C) ; and (D) — so the output is low for (B), (C) and (D) only.
