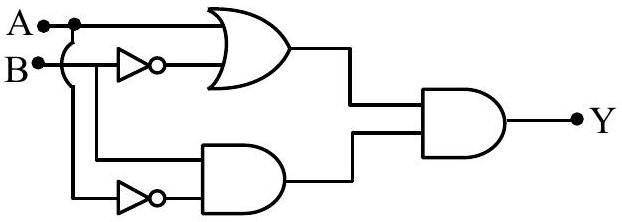

The output Y of following circuit for given inputs is :
  1. (A)
  2. (B)A • B
  3. (C)0✓ Correct
  4. (D)

Answer: (C)

Solution

Writing the output of the gate network and evaluating it for all four input combinations gives in every case, so the output is a constant . Option (C).

JEE Main · 2024 · 08 Apr 2024 · Shift 1 · Single correct option

Practise more: all JEE Main PYQs on Semiconductors →
